Safety Precaution - Two Hand Operation

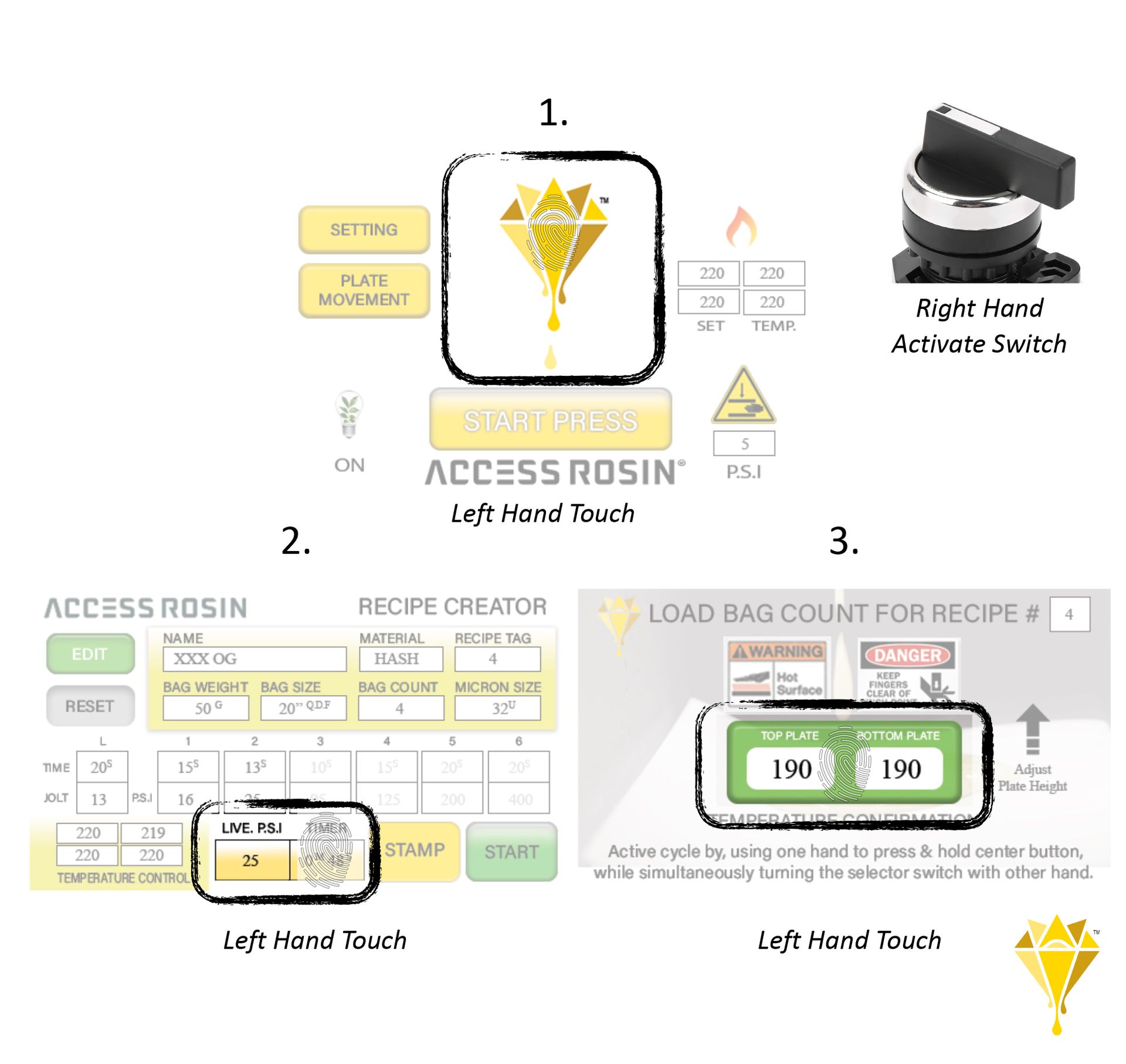

Software Screenshots

Touch Indicated Locations on Screen with One hand, While use of Toggle Switch with other hand to Control Plate Movement Down Manually, or activate a cycle.

Active cycle by, using one hand to press & hold center button, while simultaneously turning the selector switch with other hand.

Technical Explanation

The Rosin Machine V3 controls the electronic hydraulic pump via hardwire connection.

Safety measures lock the toggle switch from being able to go “down” with one hand. A two-hand activation is required before starting a cycle “Load Bag Screen”, manually use toggle switch “Home Screen”, or to create a recipe manually using the “Recipe Creator”. One hand will need to Press & Hold the screen (Indicated in images), while the other hand simultaneously activates the toggle switch.

Manual (Toggle) Operation: Manually Lower Top Plate at:

• A. Home Page: Use Two Hand Operation by pressing the “LOGO” on the home page with one hand, while activating the toggle switch down will then move the plate downward. BE CAREFUL TO AVOID PRESSING THE “START PRESS” BUTTON as this enters a cycle.
• B. In Recipe Creator: Use Two Hand operation by pressing the “LIVE PSI” box on the home page with one hand, while activating the toggle switch down will then move the plate downward.
• On the Load Bag Page: After loading the bags into the machine, use Two Hand operation by pressing and holding the green (temperatures) on the screen, while activating the toggle switch up with the other hand simultaneously. Release after activation and the cycle will start.
